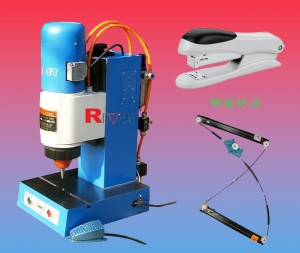

Pneumatic riveting machine BM6TQ

BM6TQ (Pneumatic orbital riveting machine) Characteristics: ■Desktop style ■Max riveting diameter Ф 6mm ■Power head movable ■Pressure by stepless regulation ■Pneumatic driving ■Rotary part protected ■Double-hand buttons or foot pedal ■Aerosol lubrication ■Set the riveting time as will Scope of applications : The instruments and meters, daily hardware, electronic products, automobile parts, etc. Customized available The model of BM6TQ is a kind of smaller desktop pneumatic riveting machine with orbital structure. The machine\\\\\\\\\\\\\\\'s power head system adjustment up and down to meet variety of workpiece\\\\\\\\\\\\\\\'s body and shape. The pneumatic system equipped with aerosol lubricating, double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.02mm. Specification: ▲Max riveting diamete Ф 6mm ( solid steel rivet ) ▲Max riveting pressure 9Kn ▲Stroke 20mm ▲Availble working space 150mm ▲Throat depth 125mm ▲Riveting tool length 50mm ▲Eccentric angle 4° ▲Motive force Pneumatic ▲Workbench dimensions 320mm×220mm ▲Power 0.92Kw ▲Physical size 400mm×350mm×800mm ▲Net weight 150Kg
