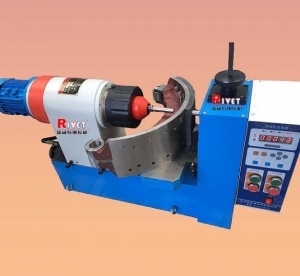

BM9W-C (Brake shoe and lining riveting machine) Characteristics:
Horizontal style
Max. riveting diameterΦ9mm
Hydraulic or pneumatic as optional
Pressure by stepless regulation
Rotary part protected
Power head movable
Oil tank separate from fuselage
Orbital structure BM9W-C (Brake shoe and lining riveting machine) Characteristics:
Horizontal style
Max. riveting diameterΦ9mm
Hydraulic or pneumatic as optional
Pressure by stepless regulation
Rotary part protected
Power head movable
Oil tank separate from fuselage
Orbital structure
Specifications:
Max. riveting diameter Ф 9mm ( solid steel rivet )
Max riveting pressure 14Kn
Stroke Length Range 60mm
Available space 120mm
Throat depth 135mm
Riveting tool lenght 85mm
Eccentric angle 3°24′
Motive force Hydraulic
Workbench dimensions 400mm×135mm
Power 0.92Kw
Physical size 500mm×400mm×1000mm
Net weigh 280Kg
