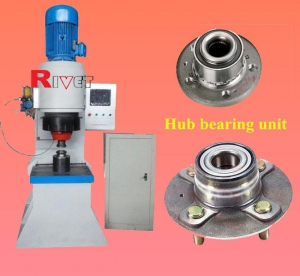

CNC riveting machine,Heavy duty riveting machine,Hub bearing unit riveting machine

JM50-PLC (Heavy duty riveting machine) Characteristics: ■Heavy duty riveting machine ■Max. riveting diameter Ф50mm ■Pressure by stepless regulation ■Stroke speed adjustable ■Hand button or foot-pedal as optional ■Rotary parts protected ■Set riveting time as will CNC riveting machine JM50-PLC Scope of applications : The daily hardware, automobile parts, mine-machinery etc. Customized available The model of JM50 is a kind of heavy duty riveting machine to meet large rivet diameters requirement, the hydraulic driven ,the machine is more stable and perfect processing result due to by advanced radial technology. The workbench adjustment up and down to meet varies of workpieces body and shapes requirement, T-slot fixing clamping apparatus available, Hydraulic system equipped with throttle valve to control stroke speed effectively. Positioning hole is coaxial with spindle to ensure riveting accuracy at ±0.02mm. heavy duty riveting machine JM50-PLC Specification: ▲Max. riveting diamete Ф 50mm ( solid steel rivet ) ▲Max. riveting pressure 200Kn ▲Pressure system output 2.5MPa ▲Stroke Length Range 40mm ▲Available working space 380 mm ▲Throat depth 325 mm ▲Riveting tool length 62mm ▲Spindle eccentricity 4º ▲Motive force Hydraulic ▲Oil-tank volume 140 Liters ▲Pressure oil brand 46 # (ISO) ▲Dimension of workbench 510 mm×680 mm ▲Power 6.4Kw ▲Physical size 1185 mm×1000 mm×2400 mm ▲Net weight 4000Kg
