Fiberglass ladder making machine

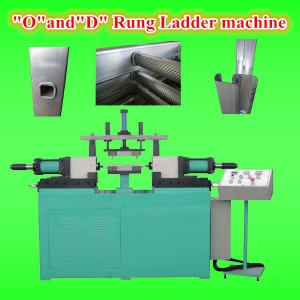

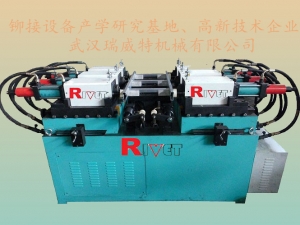

Ladder squeezing machine: model JYJ Squeezing machine (model:JYJ) to processing aluminium ladder (also called swaging or corrugation), suitable to swaging D-shape rung and O-shape rung, those kinds of rung can produce single section ladder and extension ladder,but can not joint a folding ladder.It is most important that ladder rung match up profile, generally the follwoing matches ladder rung with profile: 1. O-shape rung with C-channel profile (Both inside and outside corrugation). 2. D-shape rung with C-channel profile (Both inside and outside corrugation). 3. O-shape rung with 工-shape profile (Both inside and outside corrugation). 4. Square rung with rectangle profile ( 1. Inside corrugation and outside flanging, 2. Inside expanding and outside corrugation). 5. Oval rung with 工-shape profile (Both inside and outside corrugation). Specification: ▲Max.pressure 63Kn ▲Max. output 6MPa ▲Power 4Kw ▲Cylinder stroke 150mmx2 ▲Processing range 300-550mm ▲Squeezing system move 150mmx2 ▲Hight of corrugation 1-4mm (adjustable) ▲Applications D-shape rung,O-shape rung, square and oval. ▲Oil tank capacity 180Kg (ISO:46#) ▲A work cycle 1-99 Second (adjustable) ▲Physical size 2400mmx600mmx1700mm ▲Net weight 1100Kg
