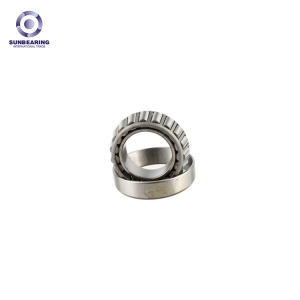

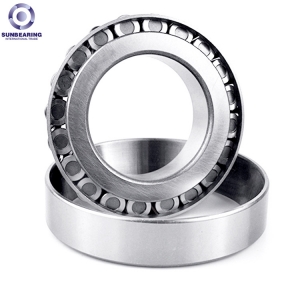

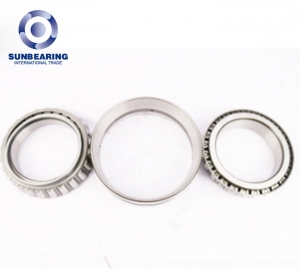

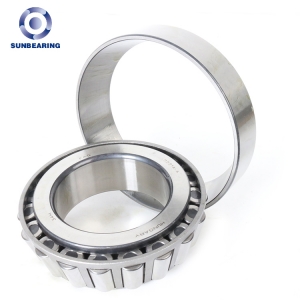

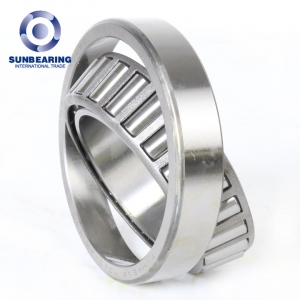

High Standard Singe Row Tapered Roller Bearing 32230
High Standard Singe Row Tapered Roller Bearing 32230
Specifications Cage Type Stamped Steel Weights 17.10Kg Dimensions d Bore 150.00mm D Cup Outer Diameter 270.00mm B Cone Width 73.00mm C Cup Width 60.00mm T Bearing Width 77.00mm Abutment and Fillet Dimentions R Cone Backface Radius 4.06mm r Cup Backface Radius 3.05mm da Cone Frontface Backing Diameter 171.00mm db Cone Backface Backing Diameter 177.00mm Da Cup Frontface Backing Diameter 256.00mm Db Cup Blackface Backing Diameter 244.09mm Ab Cage Cone Frontface Clearance 5.600mm Aa Cage Cone Blackface Clearance 9.100mm a Effective Center Lacation -11.7mm Basic Load Ratings Cr Dynamic Load Rating 595kN C0r Static Load Rating 900kN Factors Grease Reference Speed 1300rpm Oil Reference Speed 1700rpm
