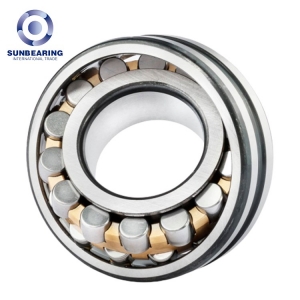

22213-EK Spherical Roller Bearing with Tapered Bore 65*120*31mm SUNBEARING

22213-EK Spherical Roller Bearing with Tapered Bore 65*120*31mm SUNBEARING Product Specification Bore diameter: 65 mm Basic dynamic load rating 198 kN Outside diameter: 120 mm Basic static load rating 216 kN Overall width: 31 mm Fatigue load limit 24 kN Rows of Rollers Double Reference speed 5000 r/min Outer ring type: Unsplit Limiting speed 7000 r/min Radial clearance class C3 Internal Clearance(Higher than Cn) Mass 1.5 kg Closure type: Open r1,2  Tapered bore, taper 1:12 min. 1.5 mm Material Chrome Steel K 3 mm Cage Material Sheet Steel Da max. 111 mm Bore K - 1:12 Tapered Bore (Standard for Most Types) ra max. 1.5 mm 22213-EK Bearing Short Description 22213EK Spherical Roller Bearing 65x120x31 Spherical Roller Bearings are manufactured for the most demanding bearing applications. Manufactured using 2 rows of rollers using a common spherical outer raceway and two inner ring raceways they are self-aligning and therefore insensitive to shaft misalignment, deflection, or bending. Bore Type: Tapered Bore - Adaptor Sleeve Require: H313 22213-EK Spherical Roller Bearing Description Bearing is self-aligning Insensitive to angular misalignment Accommodates combined loads Three-piece cage so roller sets can operate independently of each other Produced in the cylindrical and tapered bore Bearings for vibratory applications available 22213-EK Bearing Application Main applications: papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox bearing seats, rolling mill rolls, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical self-aligning bearings. Spherical Roller Bearing Clearance For the installation axial clearance of the spherical roller bearing, it can be adjusted with the adjusting nut on the journal, the adjusting washer and the thread in the bearing seat hole, or the pre-tensioned spring.
