Samsung Exynos 4412 Computer on Module Arm Cortex-A9 Andorid 4.4.2

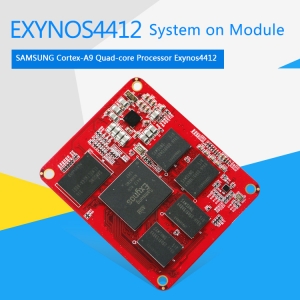

Samsung Exynos 4412 Computer on Module ARM Cortex-A9 Andorid 4.4.2 CES-4412S core board is based on Samsung Exynos 4412, Cortex-A9, quad-core processor. Using SCP encapsulation, it integrates 2GB DDR3 and 8GB eMMC.Its specialized Samsung power management chip provides the system with better stability and reliability. CES-4412S core board is only 53.5*65mm. The core board connects with the extended board by the highly reliable Panasonic Connecter. Its four fixed holes and 400 function pins can meet application requirements of various products in different situations. It provides abundant function interfaces, including HDMI, VGA and LCD display interfaces; And other peripheral interfaces, including USB, UART, I2C, I2S, SPI and extensible GPIO. CES-4412S core board is excellent Android ARM system, aiming at different product applications, including medical equipment, automotive electronics, POS, touch machine, industrial control equipment, automatic tanker terminal equipment, PDA, and other industry products. Samsung high-performance quad-core processor Samsung Exynos 4412, , Cortex-A9 architecture, with frequency at 1.4~1.6 GHz. 2GB high-capacity DDR3, 8GB eMMC. SCP Packaging, simpler technology, but more reliable and stable when operating. Supports power in widerange: 2.7V-5V. 32nm HKMG processing technology for reducing system power consumption, available for wilder areas. Supports 2D/3D image accelerator. Supports MPEG-4/H.263/H.264 format codec, up to 1080p@30fps. Supports 10M/100M Ethernet function. Support USB2.0,USB OTG 2.0,UART,SD CARD,GPIO,Camera. Supports operating system Android 4.4.4,Linux 3.0. Excellent intelligent power management circuit. Excellent solution to industry product. Motherboard Configuration CPU Samsung Exynos 4412 Architecture ARM Cortex-A9 CPU cores Quad CPU-package FCMSP-786pins, 0.65mm pitch L1 Instruction Cache 32KB L1 Data Cache 32KB L2 Cache 1MB Memory 2GB DDR3 Storage 8GB eMMC FLASH Power Management Chip S5M8767
