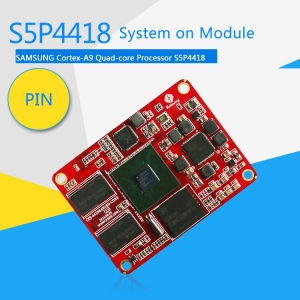

S5P4418 System on Chip Module Cortex-A9 Linux & Android & Ubuntu

S5P4418 Mother Board Cortex-A9 Linux & Android & Ubuntu CES-4418 core board is a low power, high-performance embedded ARM core board, which uses Samsung high-end and mainstream ARM processor: S5P4418, quad-core Cortex-A9 at a frequency up to 1.4GHz.It adopts 28nm production technology, inlays high-performance quad-core A9 ARM architecture, and equips with Mali-400 GPU,making its extraordinary performance. The S5P4418 supports 32KB*4 I/D L1 cache,1MB L2 cache, single channel 32-bits data bus and LPDDR2/3 which can meet 800MHz working frequency, LVDDR3 (Low VoltageDDR3), DDR3. It supports 3.3V IOlevel accorded with currently used level. No need to change electrical level,which is more convenient to design products for industry customer. CES-4418 core board provides plentiful function interfaces, and supports dual display control interfaces for LVDS and RGB, and HDMI 1.4 and MIPI-DSI interface. The CES-4418core board is integrated with gigabit Ethernet controller and provides4-paths USB 2.0HOST,1 USB OTG ,4 UART serials and extended GPIO and other peripheral interface. CES-4418 core board applies to different product applications, including medical equipment, automotive electronics, POS,touch machine, industrial control equipment, refueling auto-terminal equipment, PDA, and other industry products. Processor:Samsung S5p4418 ARM Corter-A9, quad-core processor, main frequency is up to 1.4GHz 32KB*4I/D L1 cache, 1MB L2 cache Support H.263,H.264,MPEG1,MPEG2,MPEG4,VC1,VP8,Theora,AVS,RV8/9/10,MJPEG multimedia decode Support Open GLES1.1/2.0OpenVG1.1 Support LCD/VGA,LVDS,MIPI,HDMI display Memory:Standard 1GB DDR3, optional 1GB or 2GB DDR3 eMMC:8GB eMMC PMIC:PMIC adopts AXP228, with 5-way DC/DC and 14-way LDO output power Ethernet: gigabit Ethernet Pin Number:188pins Size:43*65mm Motherboard Configuration: CPU Samsung S5p4418 Architecture ARM Cortex-A9 CPU cores Quad-core L1 Instruction Cache 32KB L1 Data Cache 32KB L2 Cache 1MB Memory Standard 1GB DDR3
