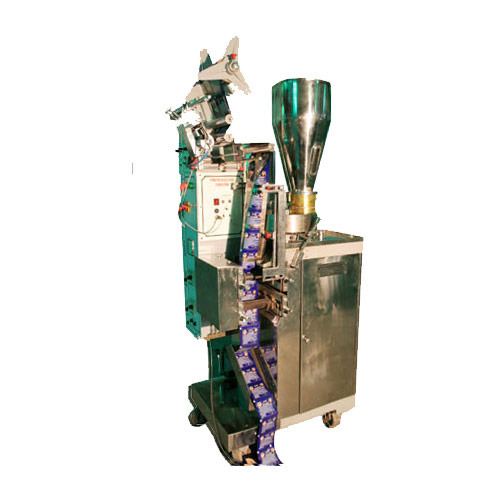

Single Track Packaging Machine

we bring forth for our clients a wide range of Single Track Packaging Machines at industry leading prices. These products are widely known for their servo pulling for quick change over. Our product range is made available in varied specifications to meet the varied requirements of the customers in an efficient manner. Moreover, variable pouch width & length, notching provision, embossing and other features make them a preferred choice of our customers.

Specifications:

• Model: DE-300L/P
• Rated speed: 60 Pouches/min.
• No. of tracks: Single track
• Packing range: Upto 200 ml
• Product to be packed: Liquid, powder
• Main motor: ¼ H.P.
• Power consumption: 2.5 KW
• Pouch size: Variable
• Net weight: 300 kg
• Gross weight: 350 kg
• Machine size: 850x600x1800 (LxWxH)
• Main gear box: Greaves
• Main motor: Prompt Greaves
• Contractor: Telemechanic
• Castor wheels frame: Make SS
• Complete S.S. cladding
• Stoving PU paint
• Machine can produce 3 side & 4 side seal both plane & bottleneck and centre seal pouch
• Photocell ensures the correct length of the pouch
• Machine can seal all heat sealable laminates
• Machine is provided with automatic temperature controller
• SS Rollers and SS reel shaft
• Adjustable disc for weight adjustment
• Dust collector Optional.
