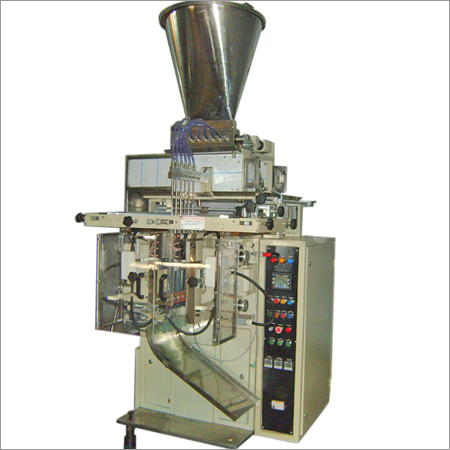

Packaging Machines

We bring forth for our clients a quality  array of Multi Track Packaging Machines at highly competitive price . Our range of machines have the ability of performing 4 side sealing and thus, it is highly demanded in the market besides the machines are widely used indifferent industries and sectors as these product requires minimum maintenance.


Following are some of the optional feature of these machines:

• Heater failure device
• Pouch width & length variable notching provision embossing and other
• Accessories-pouch seal burst unit

Specifications:

• M/C mechanism: intermittent motions
• Speeds: 65-70 strokes/min
• Sealing: 4 side seal
• Max roll width: 800mm
• Max roll diameter: 400mm
• Real core diameter: 150mm/76mm
• Packing limit 1gm, 100gm,3ml, 12ml
• Main motor: 3. 7 kw,3 phase 415volts
• Contend load 7, 5 kw
• Net weight: 2000kg
• Gross weight: 2200kg
• Air pressure 6kg/cm2 ( dry air )
• Air consumptions: 3cfm
• Machines colours nutshell grays
• Packing material: heat seal able metalized poly and laminated films
• Product to be packed:  hair conditioner, edible oil, cream, shampoo, tomato ketchup, liquid and semi-liquid material
• Vertical & horizontal sealing: mechanically cam driven
• Batch cutter operations: pneumatic
• Film drow: off, servo
• Film roll unwinding motor drive
• Control panel air: cooled with all applicable standard
• Temperature  controller: pid based
