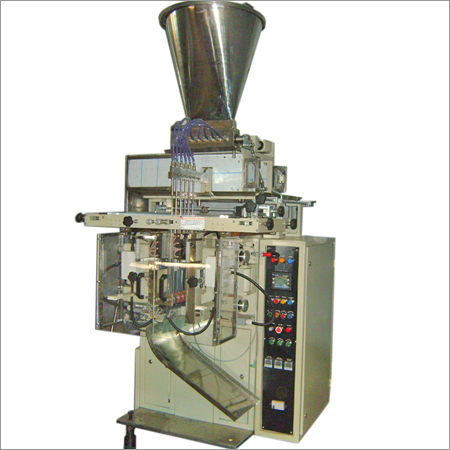

Filling & Sealing Machine

Technical specification:


• Product to be packed
  DE 400 l _ uniform liquid /paste ( 1ml to 100ml )
  DE 400 p- free flowing powder/grain (1ml to 50ml )
• Machine speed approx. 65 strokes per minute per
• Sachet width  for 4 tracks not more than 50mm
• Sealing type  four side sealing
• Sealing width   5mm (vertical) 3mm horizontal
• Filling system  hopper, volumetric cylinder piston mechanism (valve body), nozzle
• Packaging film  continuous heat seal - able laminated film in roll form
• Maximum roll width  600mm
• Maximum roll dia  400mm
• Tear   yes perforated horizontal seal point deep V cut
• Registration on film (photo mark) yes -photocell camera -DK -20, P & F mark
• Batch cutter  independent & strip cutting option
• Programmable logi circuit (PLC)  allen brandly make
• HMI pamal viem allen brandly
• Power supply communcution cabal  allen brandly mark
• A.C. (variable frequency) drive  allen brandly power flex
• Main electrical motor  cromption
• Solid state relary  unison make
• Electrical components  international grade ( CE certified )
• Unwinding motor  bonfliglioly make
• Temperature control  vertex/Honeywell make
• Pneumatic components  festo/pneumax make
• Machines load 3 track machines load  6- k v a
• Main body  powder coated m. S smooth finish
• Film pulling rollers  ss 304/316
• Sealers SS 420/SS410
• Clutch and break emco make
• Machines gross weight  approx 2100 kgs
• Optical attachment level sensor/rotary cutter/embossing provision/pouch take away conveyor/S.S. covering/acrylic safety door/UV lamp.
