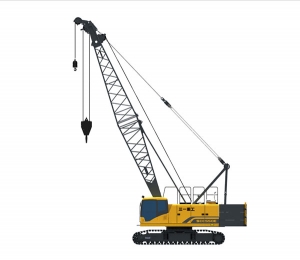

Crawler Crane SCC550E

Superior Performance Powerful Lifting Capacity Wide-track chassis of the crawler crane is designed to ensure excellent stability within 360° rotation; the maximum lifting capacity of main boom is 203.5t·m (55t×3.7m), the maximum length of main boom is 52m, and the rated single line pull of main and auxiliary winches is up to 6.5t. Excellent Operation Load-sensing system, limit load regulation, and electronic-over-hydraulic proportional micro-speed controls ensure smooth micro-movement and stable operation. Efficient Operating Speed Crawler crane SCC550E adopts cummins 6-cylinder engine with rated power of 132kW@2200rpm, maximum torque of 800Nm@1400rpm; outmost layer line speed of main and auxiliary lifting winches is 120m/min, and that of luffing winch is 72m/min. Safety and Reliability Safe Control System Switch between the operation and installation modes is more convenient and reliable, and the crawler crane\\\\\\\\\\\\'s functions including electronic level gauge, off-line stop, emergency electric control, and closed-circuit monitoring ensure your safety; load moment limiter is free of calibration, which provides you with a safer operation and costs you less time. High Return & Low Cost Optimized Transportation With telescopic crawler, the maximum transport width of whole machine is 3.36m, ensuring it to be transported freely. Convenient Maintenance It takes no more than 10min/person to adjust, 30min/person for daily maintenance and 2h/person to repair the machine. GPS remote monitori.
