LTM Indicator
LTM Indicator

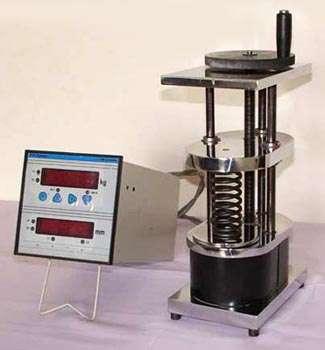

We offer superior quality LTM Indicator that finds application in various industries. Easy operation and high performance are synonym of our wide range of LTM Indicator. Available in any capacity, these machines can be used for tension and compression testing, and can be availed with various options such as manual or motorized operation, PC connectivity, PC based software with graphs, etc. Our user-friendly machine has a special option of in-built data logging and step control facility. Most importantly, all our machines are designed with three pillars and linear bearings and can be used for testing various components such as springs, rubber and plastic components, etc.
Popular for :
High efficiency
User friendly operation
Low maintenance cost
Good battery backup
Rugged construction
Steady performance
Technical Data :
Full software calibration
Flashing Displays when value crosses 90% of Full Scale
Peak Force and Spring Rate displays (optional)
Provision for set points for control in motorized applications
Data collection of up to 10 steps at a time, with preset step width, with force or position as the base parameter
Provision for RS232 output of the data, with option for selecting either continuous data transmission or transmission of collected data
Technical Specifications :
Load cell excitation ± 5V DC
Input signal range 0 to 30 mV (up to 100 mV on request)
Internal resolutionr 20,000 counts
Display resolution 1,000 to 6,000 counts (as per application)
Non- linearity +0.05 % of F.S.
Calibrationr Full digital software calibration through keyboard
Settings Set Points, Digital Filter, Baud Rate and Data Collection Settings by software through keyboard
Displays 5 digit 7 segment LED 12.7mm with negative sign, 1 each for Force and Positioni
Visual Indications (with LEDs) Overload Alarm, Peak Force, Set Points, Data Collection in progress, Data Collection Over
Audio Indication (with buzzer) Force Overload
Operating temperature rangep 0 oC to +50 oC
Storage temperature rangee -10 oC to +70 oCo
Operating voltageg 230 VAC ±10% 50 Hz
Housing type and sizep Table Top Mounting with Tilt Stand, 144 mm x 144 mm x 250 mm
