Motorized Chain Pulley Block MH2-Series Hoists

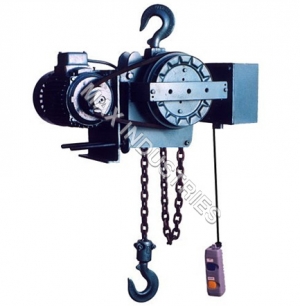

Motorized Chain Pulley Block (MH2-Series)Hoists

Anker Motorised Chain Pulley blocks are designed a s a complete product for long & dependable services. Screw & Friction disk type brake ensures full safety at all positions, even at the time of power failure. It is available both in 1 to 3 phase supply.

Available range: upto 20 tons.

Easily interchangeable & available Spares

Guarantee: One Year from date of purchase on F.O.R. Kapadwanj basis, for free repair, replacement of any part proved diffective in material or workmanship.

Motorized Chain Pulley Block MH2 Series Hoists.

Designed for Continuous duty operation, also can be used in case of Power Failure & Introduced as a Low Cost Model in Electric Hoist Range.

Available in 3 Phase & 1 Phase

Indigenously developed, No IS Standard available for the product in totality. Mechanical Parts manufactured as per IS: 3832.

Driven on V-Belt (Ecodrive Fenner).

Tested at 25 % Overload.

Hooks: As per IS: 15560 - 2005.

Load Chain: 8 mm, Grade 80, Alloy Steel Material as per IS: 6216.

Load Chain Wheel: S.G. Iron Casting Accurately pocketed.

Gears:Alloy Steel Material, precise machined, gear hobbed & case hardened duly annealed. Gears shall be lubricated with a semi-liquid grease instead of oil, which is less likely to leak, eliminates oil level checks and clings to the gears even after long idle periods.

Motor: Foot Mounted Motor operating on 415 Volts, 3 Phase/ 1 Phase, 50 Hz AC Supply.

Braking Mechanism: Screw & Friction Disc Type Self actuating.

Control Panel Unit: Totally enclosed to protect from Weather, giving output at 24 Volts to the Operational Control Station (Push Button Station).

Operational Control Station: Suspended from Hoist with a Cable & supporting Wire rope with two push buttons extendable to four / six push button station. Operated with 24 Volts.

Guarantee: One Year from the date of sale on F.O.R. Kapadwanj basis, for free repair, replacements of any part proved defective in material or workmanship.

Capacity:	0.5 Ton	1.0 Ton	2.0 Ton	3.0 Ton
Weight of Hoist at 3 Mtr. Lift:	42 Kgs.	48 Kgs.	55 Kgs.	60 Kgs.
Extra Weight per Meter:	2 Kgs	2 Kgs.	3.2 Kgs.	3.2 Kgs.
No. of Falls of Load Chain:	1 Falls	1 Falls	2 Falls	2 Falls
Overall Dimensions: (Head room x Other Dimensions)	600 x 510 x 300 mm	600 x 510 x 340 mm	650 x 510 x 340 mm	700 x 510 x 340 mm
Headroom (Hook Suspension):	600 mm	600 mm	650 mm	700 mm
Motor:	0.5 HP, 3 Phase/ 1 Phase, 1440 RPM, Class F	1.0 HP, 3 Phase/ 1 Phase, 1440 RPM, Class F	1.0 HP, 3 Phase/ 1 Phase, 1440 RPM, Class F	1.0 HP, 3 Phase/ 1 Phase, 1440 RPM, Class F
Hoisting Speed:	3.5 Mtr./ Min	3.5 Mtr./ Min	1.8 Mtr./ Min	1.0 Mtr./ Min
