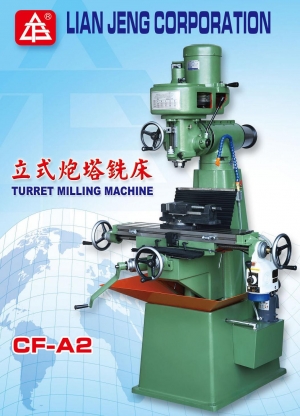

Small vertical milling machine

Models (CF-A2) Table Working surface(length*Width) 760x180mm Traveling (X / Y / Z) 480x200x350mm T-Slots 16mmx3 VERTICAL SPINDLE Spindle nose N.T.#30 Spindle speeds (R.P.M.) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60Hz) 150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50Hz) Distance from spindle end to table top 50-350mm Vertical travel of quill 80mm Swiveling angle of head(right & left) 90° Cross travel of ram 180mm Horizontal rotation angle or ram 360° Motors For vertical spindle 0.75KW(1HP)-4P/8P For table feed(optional) 0.1KW(1HP)-4P For cutting fluid pump 0.1KW(1/8HP)-4P Size Net weight(approx.) 500kg Dimensions of packing case 1300x1300x1600mm.
