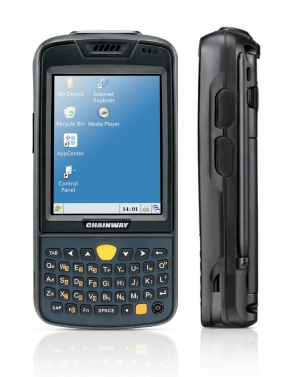

Chainway C3000 Mobile Computer

Chainway’s C3000 is a Windows CE-based rugged mobile computer, featuring a powerful 800MHz processor and best in class battery performance. With its highly customizable ability, enterprises can deploy this single device in many areas, including retail, warehouse management, logistics etc. Specification Physical Characteristics Dimensions 154mm x 77mm x 31mm/ 6.06 x 3.03 x 1.22in Weight 345g/ 12.17oz Display 3.5’’ QVGA (240*320), 6.5M colors Power Main battery: Li-ion, 3200mAh, Pistol battery: Li-ion, 5200mAh (Optional) Expansion Slot 1 PSAM, 1 SIM/PSAM .1 MicroSD(TF) Interfaces Micro USB(OTG) Keypad Numeric / Qwerty Performance CPU Cortex-A8 800MHz RAM 256MB ROM 4GB Developing Environment Operating System Windows Embedded CE 6.0 User Environment Operating Temp. 14°Fto 122°F / -10°C to 50°C Storage Temp. -40°F to 158°F / -40°C to 70°C Humidity 5%RH - 95%RH non condensing Drop Specification Multiple 1.5m drops to concrete Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature Sealing IP65 Communication (Optional) WLAN IEEE802.11 b/g/n IEEE802.11 a/b/g/n WWAN WCDMA(850/2100MHz) WCDMA(850/1900MHz) CDMA2000 EVDO:800MHz Bluetooth Bluetooth 2.0+EDR GPS UBLOX NEO-6M Camera 5MP autofocus camera with flash PSAM ISO7816 Protocol, 2 PSAM slots Barcode Scanning (Optional) 1D Linear Scanner/1D Laser / CCD Symbol SE965 2D Imager Scanner/2D CMOS Laser Scanner Symbol SE4500 RFID (Optional) LF Frequency 125kHz, 134kHz (FDX-B / HDX) Protocol ISO11784/5, ISO1800 LF (with external antenna) Frequency 134kHz (FDX-B+HDX) Protocol ISO11784/5 Range 3-12cm, external antenna HF Frequency 13.56MHz Protocol ISO14443A/B, ISO15693 Biometric (Optional) Sensor TCS2SS Sensor Type Capacitive Sensor Resolution 508DPI.
