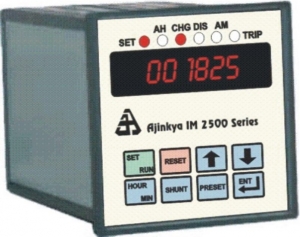

Battery Monitoring Ampere Hour Meter IM2505

IM2505 is a charge discharge type Ampere Hour Meter which is useful for tracking / monitoring battery AH in circuit. These are used in applications related to submarine and telecom or in these sectors where battery back ups are used and battery charge is to be monitored to switch on and off charger and load to avoid excessive charging as well as deep discharge. When battery is being charged, the AH count will increment. When battery starts discharging, AH count will decrement. When AH reaches the lower set point, relay will operate. This can be used to either generate warning alarm or switch off discharger and / or start charger. Relay will remain operated till battery is charged to its full level.
