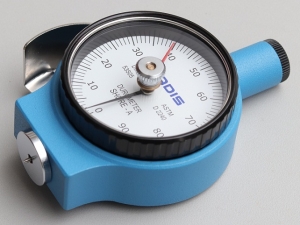

Durometer Shore B Export
Durometer Shore B Export
SPECIFICATION
| Standards | ASTM D 2240 / DIN 53505 |
| Indication range | 0 - 100 Div. (360 degree dial scale) |
| Minimum indication | 1 Shore |
| Accuracy | ± 1 Shore |
| Indenter Design (mm) | Conical 30° Included Angle |
| Spring Forces (N) | 8.046 N |
| Indenter Image |  |
| Pressure foot Dimension | Ø 18 mm. |
| Outer Dimension (mm) | Approx. (L×W×H) 63 x 39× 103 |
| Weight (g) | 200 g |
| Application | To measure the Hardness of skate wheels, printing plates, rubber, thermoplastic, and elastomers. |
