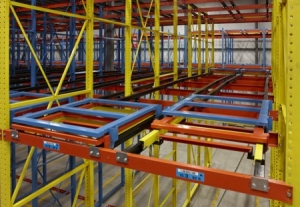

Push back pallet racking for warehouse storage

Product Description Push back pallet racking is evolved from pallet racking , it is a form of high-density storage. Design principle: Laying track on the beams , front of this track is short , and behind is tall , tilt angle is about 3 °, coupled with professional support designed pallet trolley, the first pallet goods placed on top of the trolley , when we are placing the second pallet cargo, use forklifts or manpower to promote the first pallet goods, then two layers forklift will appear, put the cargo on the two layers forklift , and so on, the depth of cargo is around 4-5 pallet. Features & Advantages: Pallets can be located, accessed and moved individually. Rapid handling of almost all types of palletised goods. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. Strength and rigidity prevents compression damage to goods. Bottom level of pallets can be stored on the floor, lowering structure costs. Dimension & Load Capacity Length:1500-3600mm Depth: 400-1500mm Height: 1000-11,000mm Loading capacity: 500-4000kg /level Special size and loading capacity are also available Main Parts Specs Upright section: 80*60*2.0, 90*60*2.0, 90*70*2.0,100*70*2.0, 120*75*2.0 etc Box beam section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5, 140*50*1.5, 160*50*1.5, 140*50*2.0, 160*50*2.0 etc Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components Color RAL7035, RAL7001, RAL6021, RAL5015, RAL1023, RAL1007, RAL2004 or your requirement Quick delivery Within 25 days for ordinary order quantity.
